8.5mil All Weather Premium Grade Vinyl Tape

Quantity:

Collections: Industrial Tape Products, Vinyl Tapes

Price per roll:

Width:	Rolls per case:	Min. Rolls Order:	< 1 Case:	1 - 4 Cases:	5 - 9 Cases:	10+ Cases:
1/2"	96	48	$2.27	$1.89	$1.75	$1.68
3/4"	64	32	$2.79	$2.33	$2.15	$2.07
1"	48	24	$3.49	$2.91	$2.68	$2.59
1-1/2"	24	12	$5.24	$4.36	$4.03	$3.88
2"	24	12	$6.98	$5.82	$5.37	$5.17

Custom Sizes Available

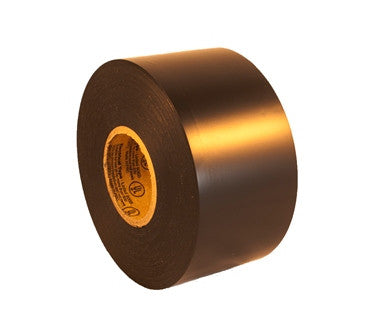

Part Number: CO85CW

Description: 8.5 mil Cold Weather Electrical tape is for insulating and jacketing. It is an all-weather pressure sensitive, vinyl tape that gives complete electrical and mechanical protection for most general taping jobs with more dielectric protection than similar tapes. Method of bonding the adhesive to the vinyl prevents transfer and gives greater adhesive strength. This tape is recommended for general splices and provides primary insulation up to 600 volts. It is excellent in low temperature applications, and is UL and CSA approved. The tape is resistant to sun, water, oil, acids, alkalies, and other corrosive materials.

Physical Properties:

Color: Black	Adhesive Type: Rubber
Sizes: 1/2", 3/4", 1", 1 1/2" and 2"	Thickness: .0085 in.
Tensile Strength: 20 lb./inch	Elongation: 250 %
Adhesion: 20 oz./inch	Adhesion to Backing at -7oC: 50 oz./inch
Flammability: 4 max. / second	Flagging: 0.10 max. / inch
Dielectric Strength - Standard: 11,000 volts	Dielectric Strength - Wet: 10,000 volts
Temperature Rating: -18oC - 105 oC

The information on this data sheet is true to the best of our knowledge. Since the condition, during the use of this product, can vary greatly we recommend the user test the product for their specific application.
